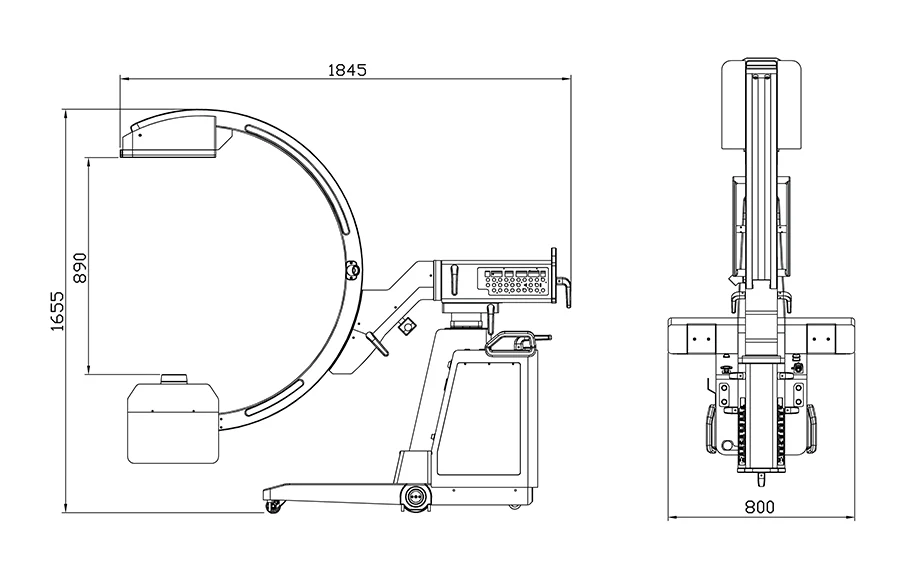

Large Free Space and SID
890mm free space and 1,100mm SID for effortless positioning around operating tables.
Flat Panel Detector C-arm
Anyview 500DR
Flat Panel Detector C-arm
Surgical Mobile C-arm equipped with Flat panel detector (9inch or 12inch), 890mm free space (SID 1,100mm), 5kW compact & powerful generator, dual control panels, and Intelligent Dose Reduction (IDR).
- Generator Power
- 5 kW High Frequency
- Detector Type
- Flat Panel Detector (9 inch / 12 inch)
- Free Space
- 890 mm
ECOTRON CO., LTD. / Surgical Imaging
Anyview 500DR
Surgical Imaging
Anyview 500DR
ECOTRON CO., LTD.
Anyview 500DR
Surgical Imaging
Product overview
Flat Panel Detector C-arm
Surgical Mobile C-arm equipped with Flat panel detector (9inch or 12inch), 890mm free space (SID 1,100mm), 5kW compact & powerful generator, dual control panels, and Intelligent Dose Reduction (IDR).
01Large Free Space and SID
02Digital Spot Mode
03Built-in Software DAP
04In-House Generator Technology
05IDR Mode (Intelligent Dose Reduction)
06Virtual Collimator
07DSA (Digital Subtraction Angiography)
08ANYVIEW DICOM Software
Core specifications
- Generator Power
- 5 kW High Frequency
- Detector Type
- Flat Panel Detector (9 inch / 12 inch)
- Free Space
- 890 mm
- SID
- 1,100 mm
- Monitor Configuration
- 34 inch Single Monitor or 19 inch Dual Monitors
- Clinical Applications
- Pain Management, Spine, Orthopedic, Vascular, Urology
Experience optimized workflow
Precision surgical imaging at your fingertips
Surgical Mobile C-arm equipped with Flat panel detector (9inch or 12inch), 890mm free space (SID 1,100mm), 5kW compact & powerful generator, dual control panels, and Intelligent Dose Reduction (IDR).
Ergonomically engineered for operating theatres with 890mm free space, 5kW high frequency output, and Intelligent Dose Reduction (IDR).
01
Large Free Space and SID
02
Digital Spot Mode
03
Built-in Software DAP
04
In-House Generator Technology
05
IDR Mode (Intelligent Dose Reduction)
06
Virtual Collimator
07
DSA (Digital Subtraction Angiography)
08
ANYVIEW DICOM Software
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.

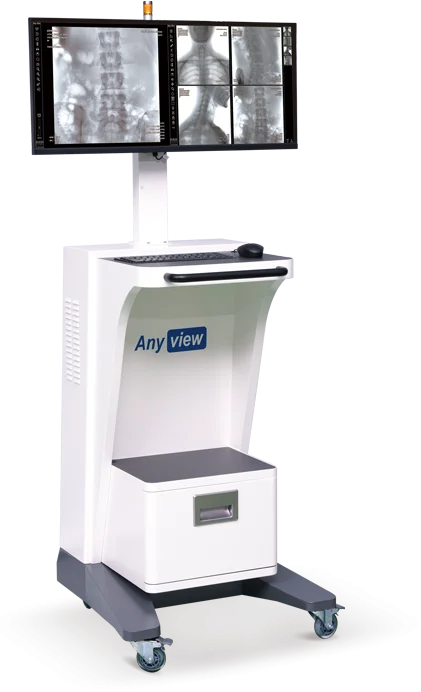

Digital Spot Mode
High resolution image mode for detailed image reading during surgical procedures.

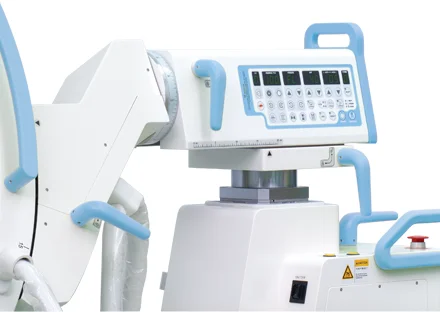

Built-in Software DAP
Real-time X-ray radiation dose display on the monitor screen.
In-House Generator Technology
5 kW compact & high-frequency generator for stable X-ray output.
IDR Mode (Intelligent Dose Reduction)
Delivers optimal diagnostic image quality at minimal radiation dose.
Virtual Collimator
Manage virtual ROI without additional X-ray exposure to reduce unnecessary radiation.
DSA (Digital Subtraction Angiography)
Optional advanced vascular imaging mode.
ANYVIEW DICOM Software
Integrated patient data management and full DICOM/PACS compatibility.
Performance and workflow
Built for reliable daily operation.
Anyview 500DR brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Generator Power
5 kW High Frequency
02
Detector Type
Flat Panel Detector (9 inch / 12 inch)
03
Free Space
890 mm
Clinical focus
Flat Panel Detector C-arm
Flat Panel Detector C-arm
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Generator Power
- 5 kW High Frequency
- Detector Type
- Flat Panel Detector (9 inch / 12 inch)
- Free Space
- 890 mm
- SID
- 1,100 mm
- Monitor Configuration
- 34 inch Single Monitor or 19 inch Dual Monitors
- Clinical Applications
- Pain Management, Spine, Orthopedic, Vascular, Urology
Designed for daily confidence
Anyview 500DR combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- Large Free Space and SID
- Digital Spot Mode
- Built-in Software DAP
- In-House Generator Technology
- IDR Mode (Intelligent Dose Reduction)
- Virtual Collimator
- DSA (Digital Subtraction Angiography)
- ANYVIEW DICOM Software
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
Request documents
