Real-Time Reaction Curve Display
Provides real-time visual reaction curves during blood analysis, allowing instantaneous monitoring of testing parameters.
3-Part Hematology Analyzer

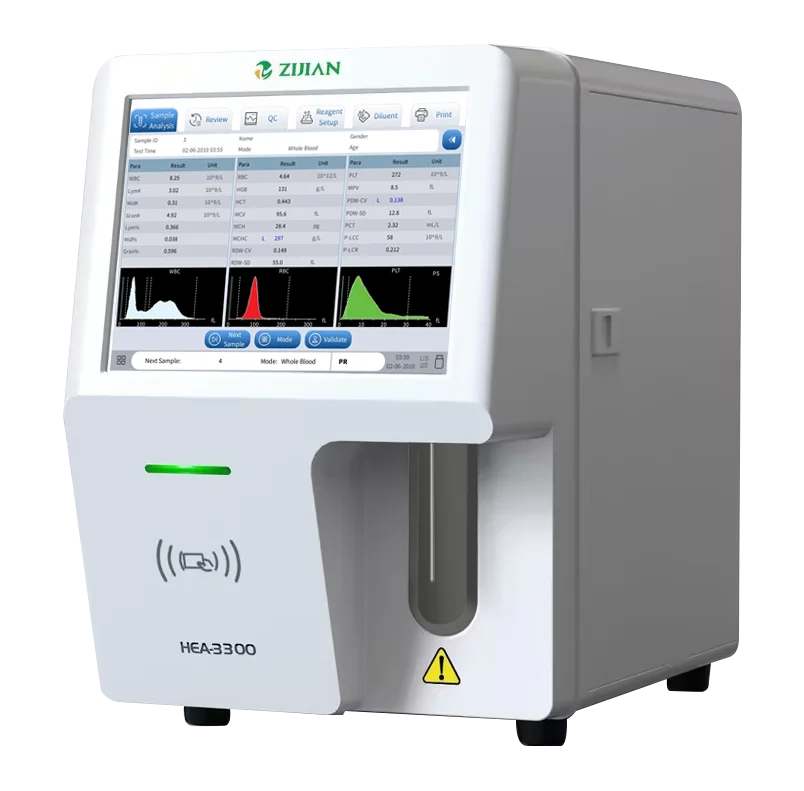

HEA-3300 3 Part Hematology Analyzer
Advanced 3-Part Automatic Hematology Analyzer with High Throughput
The HEA-3300 is an advanced 3-part differential hematology analyzer developed by Shenzhen Zijian Biotechnology Co., Ltd. It features electric impedance for WBC and RBC counts and colorimetry for HGB determination. With a throughput of 60 samples per hour, 22 parameters plus 3 histograms, and over 600,000 record storage, it provides exceptional precision with X-B floating mean and L-J quality control capabilities.
- Measurement Principles
- Electric impedance for WBC, RBC; Colorimetry for HGB
- Parameters
- 22 Parameters + 3 Histograms (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCC, P-LCR)
- Quality Control
- X-B Floating mean, L-J Quality control
Shenzhen Zijian Biotechnology / Hematology & Molecular Diagnostics
HEA-3300 3 Part Hematology Analyzer
Hematology & Molecular Diagnostics
HEA-3300 3 Part Hematology Analyzer
Shenzhen Zijian Biotechnology
HEA-3300 3 Part Hematology Analyzer
Hematology & Molecular Diagnostics
Product overview
Advanced 3-Part Automatic Hematology Analyzer with High Throughput
The HEA-3300 is an advanced 3-part differential hematology analyzer developed by Shenzhen Zijian Biotechnology Co., Ltd. It features electric impedance for WBC and RBC counts and colorimetry for HGB determination. With a throughput of 60 samples per hour, 22 parameters plus 3 histograms, and over 600,000 record storage, it provides exceptional precision with X-B floating mean and L-J quality control capabilities.
01Real-Time Reaction Curve Display
02Customized Testing Items
03Anti-Blocking & Blockage Removal
04Effective Results Analysis
05Multiple External Interfaces
06X-B & L-J Quality Control System
Core specifications
- Measurement Principles
- Electric impedance for WBC, RBC; Colorimetry for HGB
- Parameters
- 22 Parameters + 3 Histograms (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCC, P-LCR)
- Quality Control
- X-B Floating mean, L-J Quality control
- Sample Volume
- 9 μL (whole blood mode) / 20 μL (pre-diluted mode)
- Throughput
- 60 samples/hour
- Sample Type
- Capillary whole blood, Venous whole blood
- Calibration
- Manual, Calibrator, Fresh blood
- Data Storage
- More than 600,000 records
- Hematology Reagents
- Diluent A, Lyse, Probe cleanser
- Dimensions (L×W×H)
- 280 mm (L) × 460 mm (W) × 400 mm (H)
- Weight
- 18.0 kg
Experience optimized workflow
High resolution cassette-sized digital imaging
The HEA-3300 is an advanced 3-part differential hematology analyzer developed by Shenzhen Zijian Biotechnology Co., Ltd. It features electric impedance for WBC and RBC counts and colorimetry for HGB determination. With a throughput of 60 samples per hour, 22 parameters plus 3 histograms, and over 600,000 record storage, it provides exceptional precision with X-B floating mean and L-J quality control capabilities.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
Real-Time Reaction Curve Display
02
Customized Testing Items
03
Anti-Blocking & Blockage Removal
04
Effective Results Analysis
05
Multiple External Interfaces
06
X-B & L-J Quality Control System
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
Customized Testing Items
Supports customizable testing item setups to suit specific clinical laboratory needs and diagnostic protocols.
Anti-Blocking & Blockage Removal
Engineered with advanced anti-blocking mechanisms and auto blockage removal to ensure continuous, maintenance-free operation.
Effective Results Analysis
Delivers robust analytical capabilities with automated result verification, flagging, and comprehensive data presentation.
Multiple External Interfaces
Equipped with versatile connectivity ports to interface seamlessly with LIS/HIS hospital systems, external printers, and storage drives.
X-B & L-J Quality Control System
Integrated X-B floating mean and L-J quality control monitoring guarantees high diagnostic accuracy and analytical stability over time.
Performance and workflow
Built for reliable daily operation.
HEA-3300 3 Part Hematology Analyzer brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Measurement Principles
Electric impedance for WBC, RBC; Colorimetry for HGB
02
Parameters
22 Parameters + 3 Histograms (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCC, P-LCR)
03
Quality Control
X-B Floating mean, L-J Quality control
Clinical focus
Advanced 3-Part Automatic Hematology Analyzer with High Throughput
Advanced 3-Part Automatic Hematology Analyzer with High Throughput
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Measurement Principles
- Electric impedance for WBC, RBC; Colorimetry for HGB
- Parameters
- 22 Parameters + 3 Histograms (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCC, P-LCR)
- Quality Control
- X-B Floating mean, L-J Quality control
- Sample Volume
- 9 μL (whole blood mode) / 20 μL (pre-diluted mode)
- Throughput
- 60 samples/hour
- Sample Type
- Capillary whole blood, Venous whole blood
- Calibration
- Manual, Calibrator, Fresh blood
- Data Storage
- More than 600,000 records
- Hematology Reagents
- Diluent A, Lyse, Probe cleanser
- Dimensions (L×W×H)
- 280 mm (L) × 460 mm (W) × 400 mm (H)
- Weight
- 18.0 kg
Designed for daily confidence
HEA-3300 3 Part Hematology Analyzer combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- Real-Time Reaction Curve Display
- Customized Testing Items
- Anti-Blocking & Blockage Removal
- Effective Results Analysis
- Multiple External Interfaces
- X-B & L-J Quality Control System
