Flat Panel Detector Integration (9" or 12")
Amorphous silicon TFT/PD with CsI(Tl) scintillator and 205 μm pixel pitch for sharp diagnostic clarity.
Mobile Surgical C-arm System
Anyview 500DR Surgical Mobile C-arm System
High-Performance Surgical Mobile C-arm with Flat Panel Detector
The Anyview 500DR is a high-performance surgical mobile C-arm system equipped with an advanced Flat Panel Detector (9-inch or 12-inch option). Powered by a 5 kW high-frequency X-ray generator, it delivers high-resolution fluoroscopic and radiographic images with continuous, pulsed, and boost exposure options, designed for ergonomic operation and seamless surgical imaging workflows.
- System Model
- Anyview 500DR
- Generator Power Output
- 5 kW High Frequency
- Fluoroscopy Continuous Mode
- 0.5 – 5 mA / 0.5 – 10 mA
ECOTRON CO., LTD. / Digital Radiography Systems
Anyview 500DR Surgical Mobile C-arm System
Digital Radiography Systems
Anyview 500DR Surgical Mobile C-arm System
ECOTRON CO., LTD.
Anyview 500DR Surgical Mobile C-arm System
Digital Radiography Systems
Product overview
High-Performance Surgical Mobile C-arm with Flat Panel Detector
The Anyview 500DR is a high-performance surgical mobile C-arm system equipped with an advanced Flat Panel Detector (9-inch or 12-inch option). Powered by a 5 kW high-frequency X-ray generator, it delivers high-resolution fluoroscopic and radiographic images with continuous, pulsed, and boost exposure options, designed for ergonomic operation and seamless surgical imaging workflows.
01Flat Panel Detector Integration (9" or 12")
025 kW High Frequency Generator
0334-Inch High Resolution Display Monitor
04Anyview Dedicated Image Processing Suite
05Ergonomic Operation & Fluid Maneuverability
Core specifications
- System Model
- Anyview 500DR
- Generator Power Output
- 5 kW High Frequency
- Fluoroscopy Continuous Mode
- 0.5 – 5 mA / 0.5 – 10 mA
- Fluoroscopy Pulsed Mode
- 0.5 – 5 mA / 0.5 – 10 mA
- Fluoroscopy Boost Mode
- 20 mA / 30 mA
- ABS Mode
- Supported (Auto Brightness Stabilization)
- Radiography Voltage Range (kV)
- 40 – 120 kV / 40 – 125 kV
- Radiography Current Range (mA)
- 20 – 100 mA
- Radiography mAs Range
- 0.4 – 100 mAs / 0.8 – 100 mAs
- X-ray Tube Focal Spot
- Small: 0.3 mm / 0.6 mm | Large: 0.6 mm / 1.8 mm
- X-ray Tube Heat Capacity
- 30 kJ (42 kHU) / 150 kJ (210 kHU)
- Collimator
- Motorized (Shutter & Iris), 2-way opening, 360° rotation
- Detector (FPD)
- 9×9 inch (1024×1024 px) / 12 inch CsI(Tl) Amorphous Silicon (205 μm pixel pitch)
- Monitor Display
- 34-inch TFT-LCD Monitor (1 Qty on Cart)
Experience optimized workflow
High resolution cassette-sized digital imaging
The Anyview 500DR is a high-performance surgical mobile C-arm system equipped with an advanced Flat Panel Detector (9-inch or 12-inch option). Powered by a 5 kW high-frequency X-ray generator, it delivers high-resolution fluoroscopic and radiographic images with continuous, pulsed, and boost exposure options, designed for ergonomic operation and seamless surgical imaging workflows.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
Flat Panel Detector Integration (9" or 12")
02
5 kW High Frequency Generator
03
34-Inch High Resolution Display Monitor
04
Anyview Dedicated Image Processing Suite
05
Ergonomic Operation & Fluid Maneuverability
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
5 kW High Frequency Generator
Delivers robust output supporting Continuous (0.5–10 mA), Pulsed (0.5–10 mA), Boost (20–30 mA), and ABS (Auto Brightness Stabilization) modes.
34-Inch High Resolution Display Monitor
Single broad TFT-LCD display monitor mounted on a mobile cart for intuitive surgical viewing.

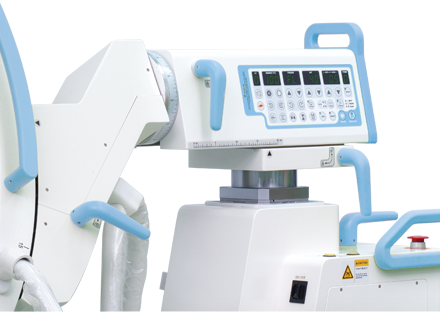

Anyview Dedicated Image Processing Suite
Advanced post-processing, rotation, annotation, masking, and full DICOM 3.0 connectivity.
Ergonomic Operation & Fluid Maneuverability
Multi-axis positioning for surgical, orthopedic, pain management, and vascular field applications.
Performance and workflow
Built for reliable daily operation.
Anyview 500DR Surgical Mobile C-arm System brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
System Model
Anyview 500DR
02
Generator Power Output
5 kW High Frequency
03
Fluoroscopy Continuous Mode
0.5 – 5 mA / 0.5 – 10 mA
Clinical focus
High-Performance Surgical Mobile C-arm with Flat Panel Detector
High-Performance Surgical Mobile C-arm with Flat Panel Detector
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- System Model
- Anyview 500DR
- Generator Power Output
- 5 kW High Frequency
- Fluoroscopy Continuous Mode
- 0.5 – 5 mA / 0.5 – 10 mA
- Fluoroscopy Pulsed Mode
- 0.5 – 5 mA / 0.5 – 10 mA
- Fluoroscopy Boost Mode
- 20 mA / 30 mA
- ABS Mode
- Supported (Auto Brightness Stabilization)
- Radiography Voltage Range (kV)
- 40 – 120 kV / 40 – 125 kV
- Radiography Current Range (mA)
- 20 – 100 mA
- Radiography mAs Range
- 0.4 – 100 mAs / 0.8 – 100 mAs
- X-ray Tube Focal Spot
- Small: 0.3 mm / 0.6 mm | Large: 0.6 mm / 1.8 mm
- X-ray Tube Heat Capacity
- 30 kJ (42 kHU) / 150 kJ (210 kHU)
- Collimator
- Motorized (Shutter & Iris), 2-way opening, 360° rotation
- Detector (FPD)
- 9×9 inch (1024×1024 px) / 12 inch CsI(Tl) Amorphous Silicon (205 μm pixel pitch)
- Monitor Display
- 34-inch TFT-LCD Monitor (1 Qty on Cart)
Designed for daily confidence
Anyview 500DR Surgical Mobile C-arm System combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- Flat Panel Detector Integration (9" or 12")
- 5 kW High Frequency Generator
- 34-Inch High Resolution Display Monitor
- Anyview Dedicated Image Processing Suite
- Ergonomic Operation & Fluid Maneuverability
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
