Direct Deposition CsI:Tl Scintillator
Columnar Cesium Iodide crystal structure channels light efficiently, maximizing MTF and sensitivity while reducing X-ray dose.
17×17" Wired Digital Radiography Flat Panel Detector

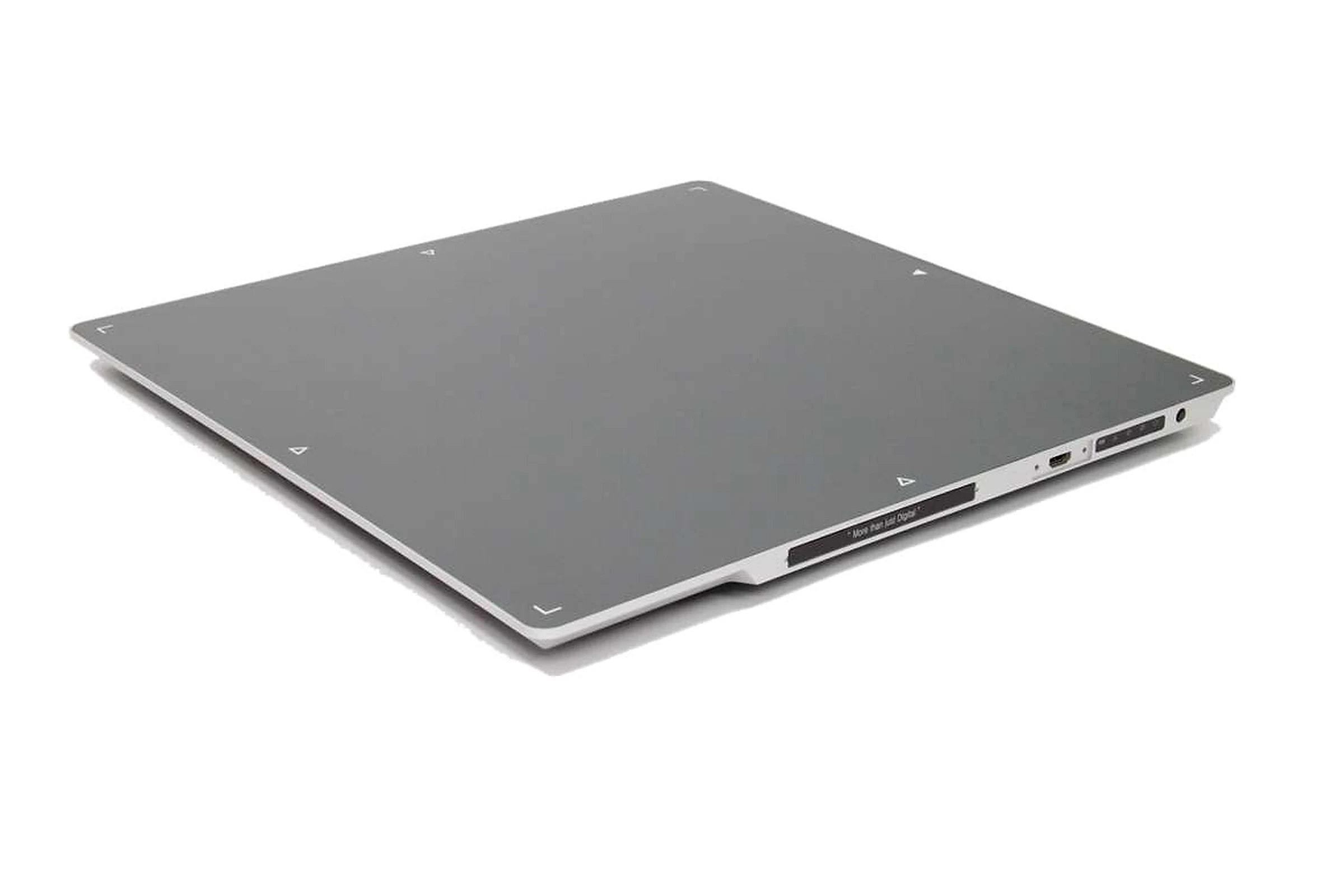

PEDRA-17FC 17×17" Wired Flat Panel Detector
High-Sensitivity 17×17" CsI Tethered Flat Panel Detector with 16-bit ADC
The PEDRA-17FC by RadiSen is a high-performance 17×17 inch (427.8×427.8 mm) cassette-sized wired digital radiography flat panel detector. Featuring a direct deposition CsI:Tl (Cesium Iodide) scintillator, 140 µm pixel pitch, 3072×3072 matrix, 16-bit ADC, and Gigabit Ethernet tethered connectivity, it delivers rapid image acquisition with exceptional spatial resolution (3.6 lp/mm) and minimal patient dose. Perfectly designed to fit standard ISO 4090 bucky trays for seamless DR retrofits.
- Sensor Type
- Amorphous Silicon (a-Si) TFT with PIN Photodiode
- Scintillator Material
- Direct Deposition CsI:Tl (Thallium-doped Cesium Iodide)
- Active Imaging Area
- 17 × 17 inch (427.8 mm × 427.8 mm)
RadiSen Co., Ltd. / Digital Imaging
PEDRA-17FC 17×17" Wired Flat Panel Detector
Digital Imaging
PEDRA-17FC 17×17" Wired Flat Panel Detector
RadiSen Co., Ltd.
PEDRA-17FC 17×17" Wired Flat Panel Detector
Digital Imaging
Product overview
High-Sensitivity 17×17" CsI Tethered Flat Panel Detector with 16-bit ADC
The PEDRA-17FC by RadiSen is a high-performance 17×17 inch (427.8×427.8 mm) cassette-sized wired digital radiography flat panel detector. Featuring a direct deposition CsI:Tl (Cesium Iodide) scintillator, 140 µm pixel pitch, 3072×3072 matrix, 16-bit ADC, and Gigabit Ethernet tethered connectivity, it delivers rapid image acquisition with exceptional spatial resolution (3.6 lp/mm) and minimal patient dose. Perfectly designed to fit standard ISO 4090 bucky trays for seamless DR retrofits.
01Direct Deposition CsI:Tl Scintillator
02Full 17×17 Inch Active Field
03High-Resolution 140 µm Pixel Pitch
0416-Bit High Dynamic Range ADC
05Gigabit Ethernet High-Speed Tether
06ISO 4090 Standard Cassette Dimensions
Core specifications
- Sensor Type
- Amorphous Silicon (a-Si) TFT with PIN Photodiode
- Scintillator Material
- Direct Deposition CsI:Tl (Thallium-doped Cesium Iodide)
- Active Imaging Area
- 17 × 17 inch (427.8 mm × 427.8 mm)
- Pixel Pitch
- 140 µm
- Pixel Matrix
- 3072 × 3072 (Effective Array: 3056 × 3056)
- Spatial Resolution
- 3.6 lp/mm
- A/D Conversion
- 16-bit (65,536 grayscales)
- X-Ray Voltage Range
- 40 kVp – 150 kVp
- Interface / Communication
- Gigabit Ethernet (1000Base-T) wired tether connection
- Image Acquisition Time
- Preview: < 1.5 seconds; Full cycle: < 5 seconds
- Trigger Mode
- Automatic Exposure Detection (AED) / Generator Sync Trigger
- Software Compatibility
- DiRux View acquisition software with AI-assisted image processing
- Operating Systems
- Windows 10 / Windows 11 64-bit
- Certifications
- CE, ISO 13485, FDA Cleared
Experience optimized workflow
High resolution cassette-sized digital imaging
The PEDRA-17FC by RadiSen is a high-performance 17×17 inch (427.8×427.8 mm) cassette-sized wired digital radiography flat panel detector. Featuring a direct deposition CsI:Tl (Cesium Iodide) scintillator, 140 µm pixel pitch, 3072×3072 matrix, 16-bit ADC, and Gigabit Ethernet tethered connectivity, it delivers rapid image acquisition with exceptional spatial resolution (3.6 lp/mm) and minimal patient dose. Perfectly designed to fit standard ISO 4090 bucky trays for seamless DR retrofits.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
Direct Deposition CsI:Tl Scintillator
02
Full 17×17 Inch Active Field
03
High-Resolution 140 µm Pixel Pitch
04
16-Bit High Dynamic Range ADC
05
Gigabit Ethernet High-Speed Tether
06
ISO 4090 Standard Cassette Dimensions
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
Full 17×17 Inch Active Field
Generous 427.8 × 427.8 mm field of view covers the entire anatomical region without repositioning or rotating the detector.
High-Resolution 140 µm Pixel Pitch
3072 × 3072 pixel matrix generates 3.6 lp/mm spatial resolution for outstanding micro-structural bone and soft-tissue detail.
16-Bit High Dynamic Range ADC
Quantizes image data into 65,536 gray levels, ensuring rich contrast graduation across wide tissue density variations.
Gigabit Ethernet High-Speed Tether
Direct 1000Base-T wired connection delivers sub-second preview images and rapid complete image transfers with rock-solid stability.
ISO 4090 Standard Cassette Dimensions
Exact 17×17 inch cassette form factor fits effortlessly into existing Bucky trays without requiring mechanical modifications.
Performance and workflow
Built for reliable daily operation.
PEDRA-17FC 17×17" Wired Flat Panel Detector brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Sensor Type
Amorphous Silicon (a-Si) TFT with PIN Photodiode
02
Scintillator Material
Direct Deposition CsI:Tl (Thallium-doped Cesium Iodide)
03
Active Imaging Area
17 × 17 inch (427.8 mm × 427.8 mm)
Clinical focus
High-Sensitivity 17×17" CsI Tethered Flat Panel Detector with 16-bit ADC
High-Sensitivity 17×17" CsI Tethered Flat Panel Detector with 16-bit ADC
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Sensor Type
- Amorphous Silicon (a-Si) TFT with PIN Photodiode
- Scintillator Material
- Direct Deposition CsI:Tl (Thallium-doped Cesium Iodide)
- Active Imaging Area
- 17 × 17 inch (427.8 mm × 427.8 mm)
- Pixel Pitch
- 140 µm
- Pixel Matrix
- 3072 × 3072 (Effective Array: 3056 × 3056)
- Spatial Resolution
- 3.6 lp/mm
- A/D Conversion
- 16-bit (65,536 grayscales)
- X-Ray Voltage Range
- 40 kVp – 150 kVp
- Interface / Communication
- Gigabit Ethernet (1000Base-T) wired tether connection
- Image Acquisition Time
- Preview: < 1.5 seconds; Full cycle: < 5 seconds
- Trigger Mode
- Automatic Exposure Detection (AED) / Generator Sync Trigger
- Software Compatibility
- DiRux View acquisition software with AI-assisted image processing
- Operating Systems
- Windows 10 / Windows 11 64-bit
- Certifications
- CE, ISO 13485, FDA Cleared
Designed for daily confidence
PEDRA-17FC 17×17" Wired Flat Panel Detector combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- Direct Deposition CsI:Tl Scintillator
- Full 17×17 Inch Active Field
- High-Resolution 140 µm Pixel Pitch
- 16-Bit High Dynamic Range ADC
- Gigabit Ethernet High-Speed Tether
- ISO 4090 Standard Cassette Dimensions
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
