10.4" Color Touchscreen Display
Bright TFT LCD touchscreen displays ventilation parameters, multi-waveform graphics, and intuitive menu-driven settings.
Premium Anesthesia Workstation

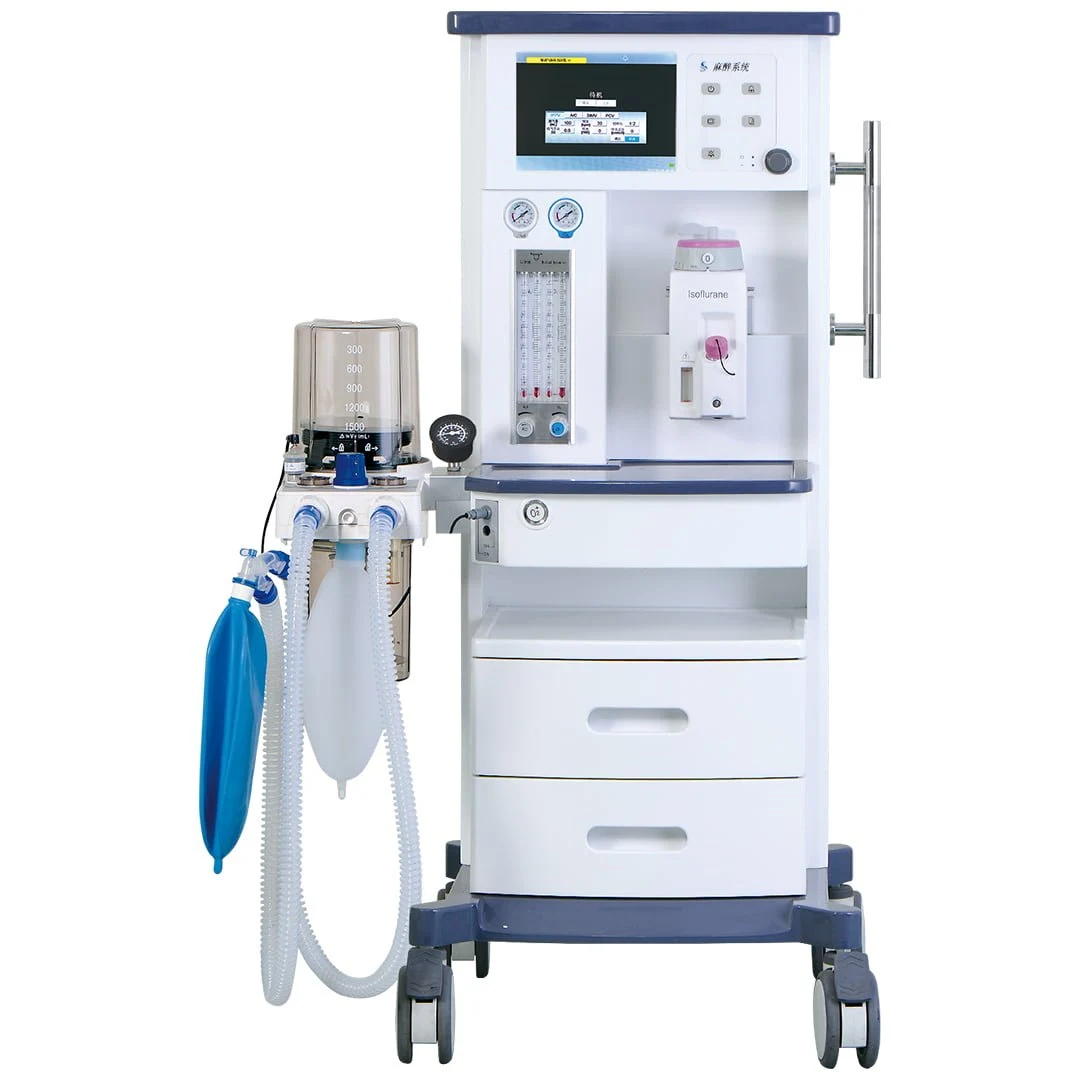

Superstar S6500A Anesthesia Workstation
Precision Anesthesia Delivery and Comprehensive ICU-Grade Ventilation
The Superstar S6500A is a versatile anesthesia workstation designed for operating rooms, intensive care units (ICUs), and surgical suites. Featuring a 10.4-inch TFT color touchscreen, three-gas source (O2, N2O, Air), advanced ventilation modes (IPPV, A/C, PCV, SIMV, SIGH), an integrated autoclavable breathing circuit, and precision temperature/flow-compensated vaporizers with interlocking safety, the S6500A ensures patient-centered anesthesia management from neonate to adult cases.
- Modality
- Combined Anesthesia Delivery System & ICU-Grade Ventilator
- Display Screen
- 10.4-inch TFT LCD color touch screen with real-time waveforms
- Gas Supply
- O2, N2O, Air (pipeline & auxiliary cylinder yokes)
Nanjing Superstar Medical Equipment Co., Ltd. / Anesthesia & Critical Care

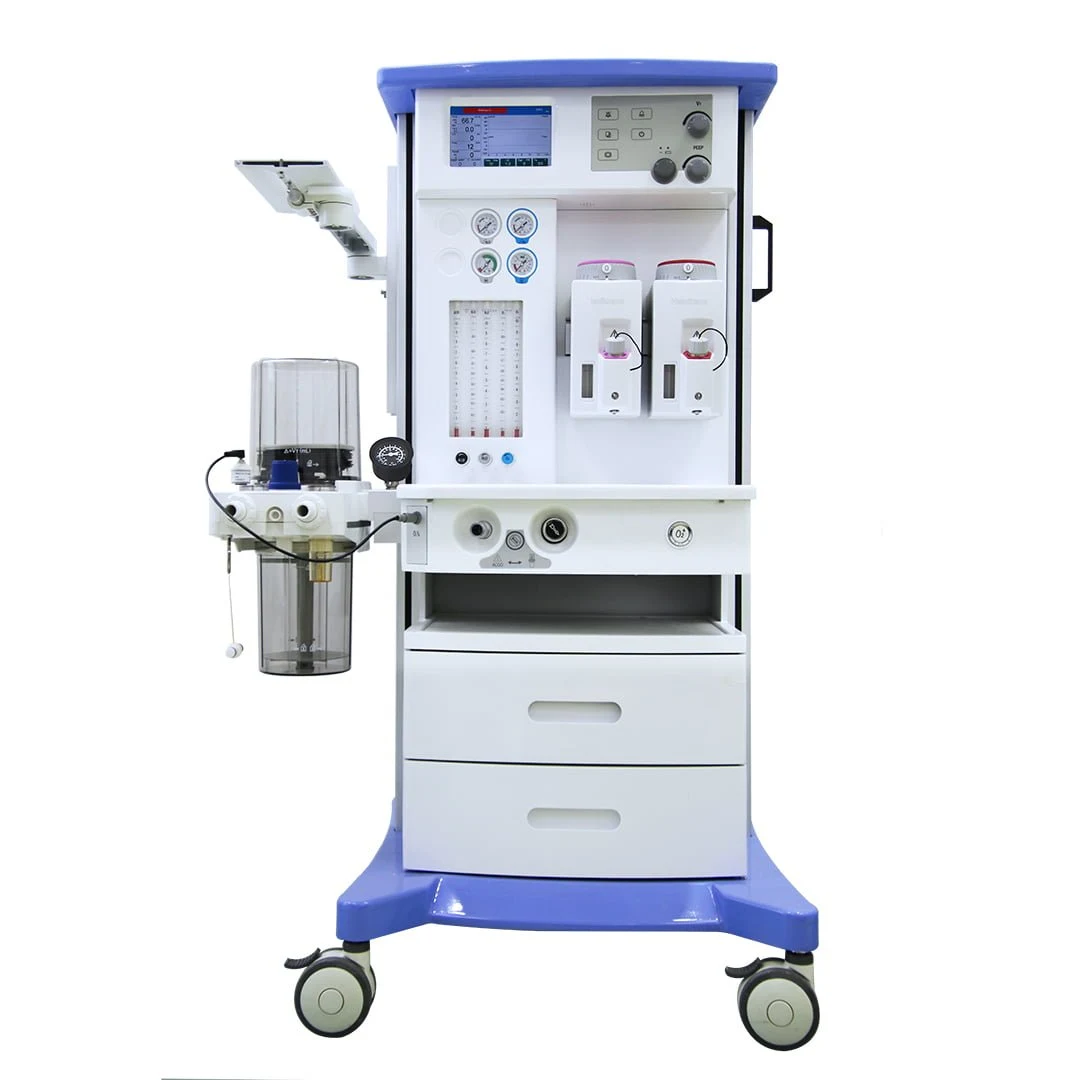

Superstar S6500A Anesthesia Workstation
Anesthesia & Critical Care
Superstar S6500A Anesthesia Workstation
Nanjing Superstar Medical Equipment Co., Ltd.
Superstar S6500A Anesthesia Workstation
Anesthesia & Critical Care
Product overview
Precision Anesthesia Delivery and Comprehensive ICU-Grade Ventilation
The Superstar S6500A is a versatile anesthesia workstation designed for operating rooms, intensive care units (ICUs), and surgical suites. Featuring a 10.4-inch TFT color touchscreen, three-gas source (O2, N2O, Air), advanced ventilation modes (IPPV, A/C, PCV, SIMV, SIGH), an integrated autoclavable breathing circuit, and precision temperature/flow-compensated vaporizers with interlocking safety, the S6500A ensures patient-centered anesthesia management from neonate to adult cases.
0110.4" Color Touchscreen Display
02Versatile Ventilation Modes
03Integrated Heated Breathing Circuit
04Precision Interlocking Vaporizers
05Three-Gas Source Flowmeter
06Comprehensive Safety Alarms
Core specifications
- Modality
- Combined Anesthesia Delivery System & ICU-Grade Ventilator
- Display Screen
- 10.4-inch TFT LCD color touch screen with real-time waveforms
- Gas Supply
- O2, N2O, Air (pipeline & auxiliary cylinder yokes)
- Ventilation Modes
- IPPV, A/C, PCV, SIMV, SIGH, MANUAL
- Tidal Volume (Vt)
- 20 mL – 1500 mL (pediatric to adult coverage)
- Breathing Frequency
- 1 to 100 bpm
- I:E Ratio
- 4:1 – 1:8
- PEEP Pressure
- 0 to 30 cmH2O integrated electronic PEEP
- Pressure Trigger
- -20 cmH2O to 0 cmH2O
- Flow Trigger
- 0.5 L/min – 30 L/min
- Airway Pressure Limit
- 5 cmH2O – 60 cmH2O
- Vaporizer Compatibility
- Selectatec-compatible dual vaporizer mounts (Halothane, Enflurane, Isoflurane, Sevoflurane)
- Waveform Displays
- Pressure-Time, Flow-Time, Volume-Time loops with FiO2 measurement
- Dimensions (L×W×H)
- 740 mm × 795 mm × 1540 mm (weight: ~100 kg)
- Power Supply
- 100V – 240V AC, 50/60 Hz with built-in rechargeable backup battery (2+ hours)
Experience optimized workflow
High resolution cassette-sized digital imaging
The Superstar S6500A is a versatile anesthesia workstation designed for operating rooms, intensive care units (ICUs), and surgical suites. Featuring a 10.4-inch TFT color touchscreen, three-gas source (O2, N2O, Air), advanced ventilation modes (IPPV, A/C, PCV, SIMV, SIGH), an integrated autoclavable breathing circuit, and precision temperature/flow-compensated vaporizers with interlocking safety, the S6500A ensures patient-centered anesthesia management from neonate to adult cases.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
10.4" Color Touchscreen Display
02
Versatile Ventilation Modes
03
Integrated Heated Breathing Circuit
04
Precision Interlocking Vaporizers
05
Three-Gas Source Flowmeter
06
Comprehensive Safety Alarms
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
Versatile Ventilation Modes
Supports IPPV, A/C, PCV, SIMV, SIGH, and MANUAL modes for comprehensive respiratory support across patient age groups.
Integrated Heated Breathing Circuit
Tidy, compact, autoclavable absorber and breathing circuit minimize tubing clutter and eliminate condensation buildup.
Precision Interlocking Vaporizers
High-precision vaporizers equipped with temperature, flow, and pressure compensation, plus interlocking self-lock mechanism.
Three-Gas Source Flowmeter
Accurate mechanical flowmeter tubes for O2, N2O, and Air with low-O2 alarm and automatic N2O cut-off safety interlock.
Comprehensive Safety Alarms
Three-level visual and acoustic alarm architecture covering airway pressure, minute volume, power loss, and gas supply limits.
Performance and workflow
Built for reliable daily operation.
Superstar S6500A Anesthesia Workstation brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Modality
Combined Anesthesia Delivery System & ICU-Grade Ventilator
02
Display Screen
10.4-inch TFT LCD color touch screen with real-time waveforms
03
Gas Supply
O2, N2O, Air (pipeline & auxiliary cylinder yokes)
Clinical focus
Precision Anesthesia Delivery and Comprehensive ICU-Grade Ventilation
Precision Anesthesia Delivery and Comprehensive ICU-Grade Ventilation
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Modality
- Combined Anesthesia Delivery System & ICU-Grade Ventilator
- Display Screen
- 10.4-inch TFT LCD color touch screen with real-time waveforms
- Gas Supply
- O2, N2O, Air (pipeline & auxiliary cylinder yokes)
- Ventilation Modes
- IPPV, A/C, PCV, SIMV, SIGH, MANUAL
- Tidal Volume (Vt)
- 20 mL – 1500 mL (pediatric to adult coverage)
- Breathing Frequency
- 1 to 100 bpm
- I:E Ratio
- 4:1 – 1:8
- PEEP Pressure
- 0 to 30 cmH2O integrated electronic PEEP
- Pressure Trigger
- -20 cmH2O to 0 cmH2O
- Flow Trigger
- 0.5 L/min – 30 L/min
- Airway Pressure Limit
- 5 cmH2O – 60 cmH2O
- Vaporizer Compatibility
- Selectatec-compatible dual vaporizer mounts (Halothane, Enflurane, Isoflurane, Sevoflurane)
- Waveform Displays
- Pressure-Time, Flow-Time, Volume-Time loops with FiO2 measurement
- Dimensions (L×W×H)
- 740 mm × 795 mm × 1540 mm (weight: ~100 kg)
- Power Supply
- 100V – 240V AC, 50/60 Hz with built-in rechargeable backup battery (2+ hours)
Designed for daily confidence
Superstar S6500A Anesthesia Workstation combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- 10.4" Color Touchscreen Display
- Versatile Ventilation Modes
- Integrated Heated Breathing Circuit
- Precision Interlocking Vaporizers
- Three-Gas Source Flowmeter
- Comprehensive Safety Alarms
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
