Ultra-Lightweight & Compact (1.5 kg)
Effortless single-hand operational mobility for dental clinics and field environments.
Handheld Dental X-ray System

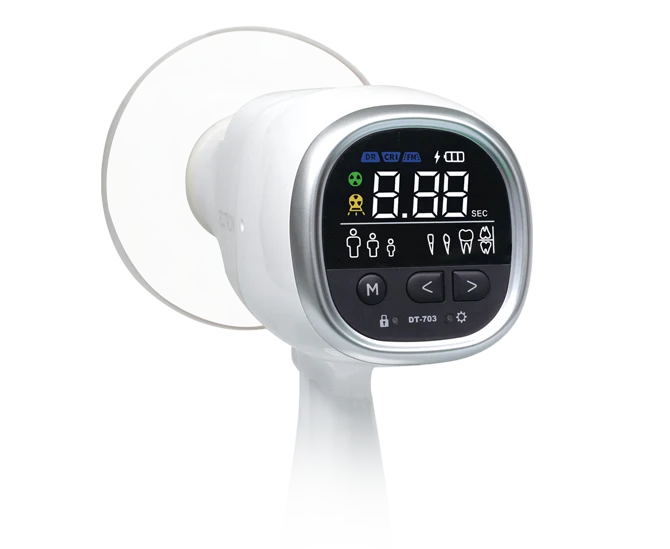

ECOTRON DT-703 Dental Portable X-ray
Ultra-Lightweight Handheld Intraoral Dental X-ray System (1.5 kg)
The ECOTRON DT-703 is an ultra-lightweight (1.5 kg) handheld portable intraoral dental X-ray system engineered for high-resolution diagnostic imaging. Featuring an ultra-fine 0.3 mm × 0.3 mm focal spot size, stable 70 kV / 3 mA output, rechargeable lithium battery operation, and optional backscatter shielding for clinician protection.
- Product Model
- DT-703 Dental Portable X-ray
- Tube Output Voltage / Current
- 70 kV / 3 mA
- kV / mA Deviation
- ±3%
ECOTRON CO., LTD. / Digital Radiography Systems
ECOTRON DT-703 Dental Portable X-ray
Digital Radiography Systems
ECOTRON DT-703 Dental Portable X-ray
ECOTRON CO., LTD.
ECOTRON DT-703 Dental Portable X-ray
Digital Radiography Systems
Product overview
Ultra-Lightweight Handheld Intraoral Dental X-ray System (1.5 kg)
The ECOTRON DT-703 is an ultra-lightweight (1.5 kg) handheld portable intraoral dental X-ray system engineered for high-resolution diagnostic imaging. Featuring an ultra-fine 0.3 mm × 0.3 mm focal spot size, stable 70 kV / 3 mA output, rechargeable lithium battery operation, and optional backscatter shielding for clinician protection.
01Ultra-Lightweight & Compact (1.5 kg)
020.3 mm Superb Focal Spot
03Precision High Voltage Output
04Long-lasting Battery Power
05Operator Protection (Backscatter Shield)
Core specifications
- Product Model
- DT-703 Dental Portable X-ray
- Tube Output Voltage / Current
- 70 kV / 3 mA
- kV / mA Deviation
- ±3%
- Focal Spot Size
- 0.3 mm × 0.3 mm
- Target Angle
- 13°
- Inherent Filtration
- 0.5 mm Al
- Total Filtration
- 1.5 mm Al
- Battery Charger Input
- AC 100 – 240 V / 50~60 Hz
- Battery Voltage
- 24.2 V (Nominal) / 25.2 V (Maximum)
- Net Weight
- 1.5 kg
- Optional Accessories
- Backscatter Radiation Shield
Experience optimized workflow
High resolution cassette-sized digital imaging
The ECOTRON DT-703 is an ultra-lightweight (1.5 kg) handheld portable intraoral dental X-ray system engineered for high-resolution diagnostic imaging. Featuring an ultra-fine 0.3 mm × 0.3 mm focal spot size, stable 70 kV / 3 mA output, rechargeable lithium battery operation, and optional backscatter shielding for clinician protection.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
Ultra-Lightweight & Compact (1.5 kg)
02
0.3 mm Superb Focal Spot
03
Precision High Voltage Output
04
Long-lasting Battery Power
05
Operator Protection (Backscatter Shield)
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
0.3 mm Superb Focal Spot
Delivers exceptional spatial resolution and sharp detail for intraoral dental diagnostics.
Precision High Voltage Output
Fixed 70 kV / 3 mA tube output with minimal ±3% deviation tolerance.

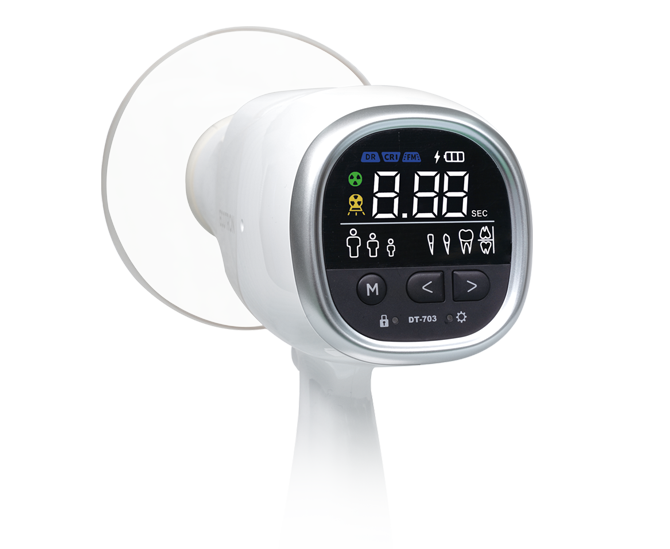

Long-lasting Battery Power
24.2 V nominal (25.2 V max) rechargeable lithium-ion pack with 100–240 V AC charger.

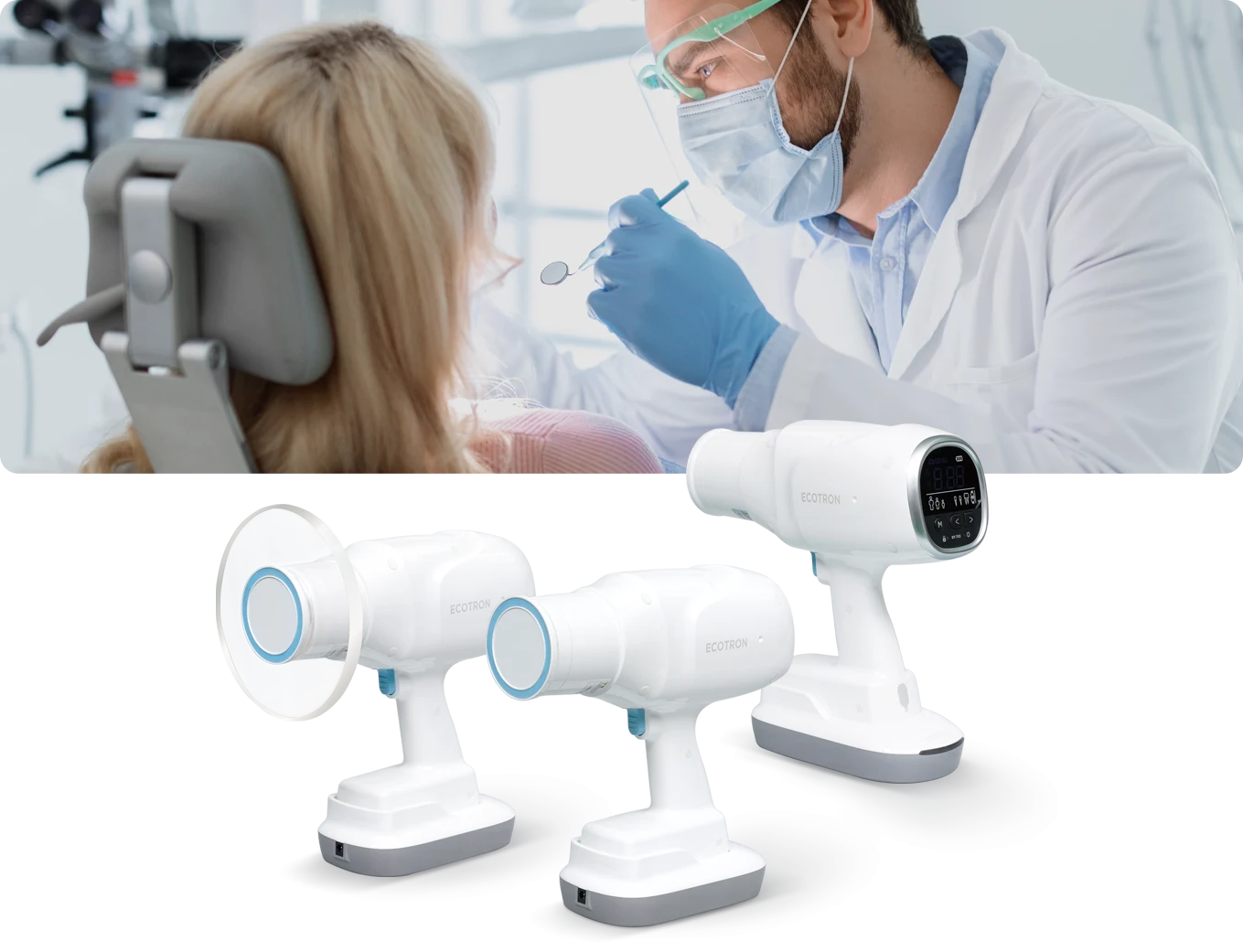

Operator Protection (Backscatter Shield)
Optional backscatter radiation guard for enhanced user safety.
Performance and workflow
Built for reliable daily operation.
ECOTRON DT-703 Dental Portable X-ray brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Product Model
DT-703 Dental Portable X-ray
02
Tube Output Voltage / Current
70 kV / 3 mA
03
kV / mA Deviation
±3%
Clinical focus
Ultra-Lightweight Handheld Intraoral Dental X-ray System (1.5 kg)
Ultra-Lightweight Handheld Intraoral Dental X-ray System (1.5 kg)
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Product Model
- DT-703 Dental Portable X-ray
- Tube Output Voltage / Current
- 70 kV / 3 mA
- kV / mA Deviation
- ±3%
- Focal Spot Size
- 0.3 mm × 0.3 mm
- Target Angle
- 13°
- Inherent Filtration
- 0.5 mm Al
- Total Filtration
- 1.5 mm Al
- Battery Charger Input
- AC 100 – 240 V / 50~60 Hz
- Battery Voltage
- 24.2 V (Nominal) / 25.2 V (Maximum)
- Net Weight
- 1.5 kg
- Optional Accessories
- Backscatter Radiation Shield
Designed for daily confidence
ECOTRON DT-703 Dental Portable X-ray combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- Ultra-Lightweight & Compact (1.5 kg)
- 0.3 mm Superb Focal Spot
- Precision High Voltage Output
- Long-lasting Battery Power
- Operator Protection (Backscatter Shield)
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
