Mobile Surgical C-Arm with Dynamic FPD

Browiner CompaX 500 Pro Mobile Surgical C-Arm

Name: Browiner CompaX 500 Pro Mobile Surgical C-Arm
Brand: Shenzhen Browiner Tech Co., Ltd.
SKU: TMS-52
Price: Contact for Quote BDT
Availability: InStock

Dynamic Flat Panel Mobile Surgical C-Arm with Intelligent Dose Reduction

The Browiner CompaX 500 Pro is an advanced mobile surgical C-arm imaging system featuring dynamic flat-panel detector (FPD) technology, high-power 5kW / 15kW generator options, and expansive C-arm geometry. Engineered for orthopedic, spine, vascular, pain management, and trauma surgeries, it provides real-time distortion-free fluoroscopy and digital radiography with color-coded orbital positioning, Automatic Brightness Control (ABS), and versatile viewing carts.

Request Information ↗

System Category: Mobile Surgical Fluoroscopy & Radiography C-Arm System
Detector Type: Dynamic Flat Panel Detector (a-Si / CMOS)
Detector Sizes: 9 × 9 inch (21 × 21 cm) or 12 × 12 inch (30 × 30 cm)

Shenzhen Browiner Tech Co., Ltd. / Surgical Imaging Browiner CompaX 500 Pro Mobile Surgical C-Arm

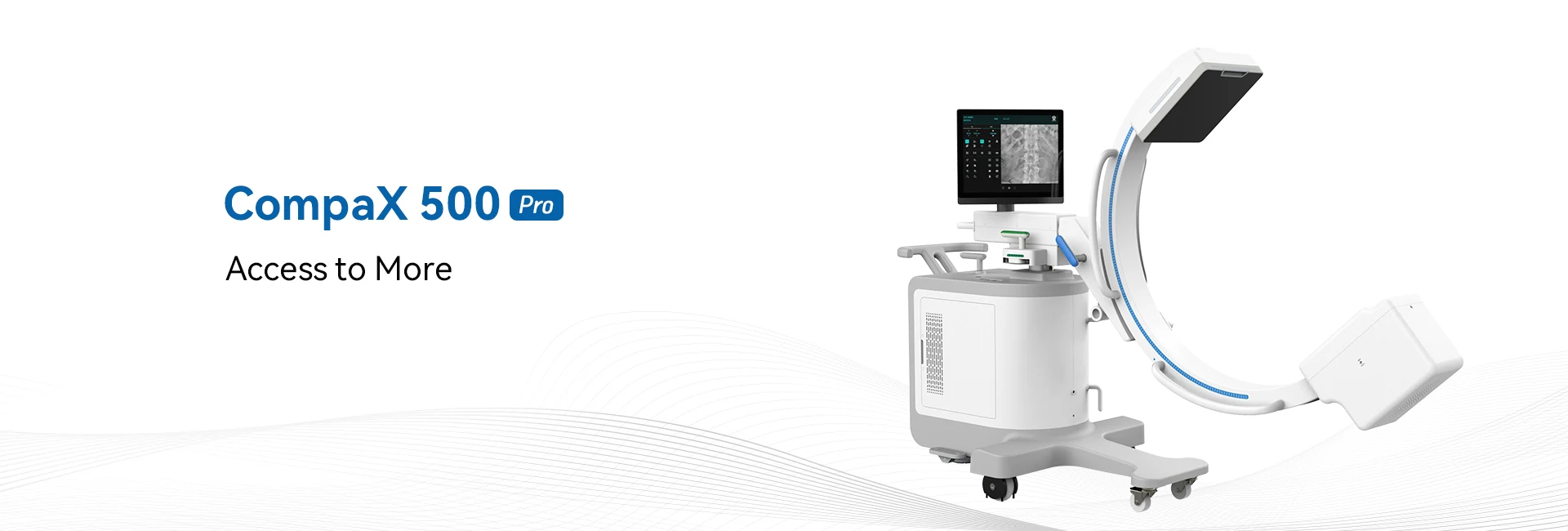

Browiner CompaX 500 Pro Mobile Surgical C-Arm main view

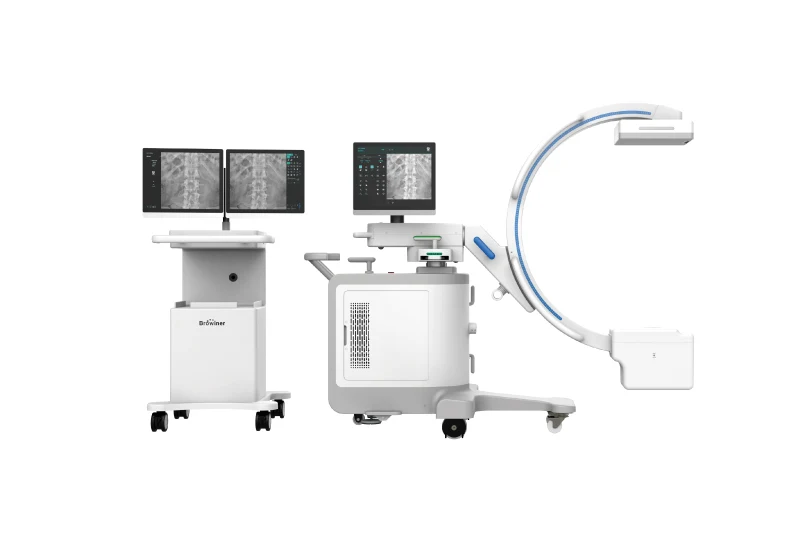

Browiner CompaX 500 Pro Mobile Surgical C-Arm secondary detail

Experience optimized workflow

Precision surgical imaging at your fingertips

Ergonomically engineered for operating theatres with 890mm free space, 5kW high frequency output, and Intelligent Dose Reduction (IDR).

01 Dynamic Flat Panel Detector

02 Extra-Large C-Arm Geometry

03 Color-Coded Axis Positioning

04 Intelligent Variable-Frequency Pulse

05 Automatic Brightness Control (ABS)

06 Flexible Viewing Configurations

Key features

Designed around the way you work

Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.

Dynamic Flat Panel Detector

Large 9×9" or 12×12" dynamic FPD delivers 100% distortion-free fluoroscopic imaging with high dynamic range and zero optical aberration.

Extra-Large C-Arm Geometry

Generous free space and deep immersion depth accommodate obese patients and specialized operating tables with ease.

Color-Coded Axis Positioning

Color-matched orbital, horizontal, and angular indicators allow operating room technicians to achieve target angles quickly and accurately.

Intelligent Variable-Frequency Pulse

Adaptive pulse fluoroscopy matches anatomical motion, reducing staff and patient radiation dose while keeping motion blur to a minimum.

Automatic Brightness Control (ABS)

Maintains consistent image contrast and brightness automatically during surgical instrument movement and anatomical transitions.

Flexible Viewing Configurations

Offers choices between dual-monitor cart, high-definition large single display cart, or an all-in-one compact surgical footprint.

Performance and workflow

Built for reliable daily operation.

Browiner CompaX 500 Pro Mobile Surgical C-Arm brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.

System Category

Mobile Surgical Fluoroscopy & Radiography C-Arm System

Detector Type

Dynamic Flat Panel Detector (a-Si / CMOS)

Detector Sizes

9 × 9 inch (21 × 21 cm) or 12 × 12 inch (30 × 30 cm)

Browiner CompaX 500 Pro Mobile Surgical C-Arm in daily clinical use

Clinical focus
Dynamic Flat Panel Mobile Surgical C-Arm with Intelligent Dose Reduction

System information

Product details and resources

Review core configuration details, workflow information, and available product resources.

System Category: Mobile Surgical Fluoroscopy & Radiography C-Arm System
Detector Type: Dynamic Flat Panel Detector (a-Si / CMOS)
Detector Sizes: 9 × 9 inch (21 × 21 cm) or 12 × 12 inch (30 × 30 cm)
X-ray Generator: 5 kW / 15 kW High-Frequency Monoblock Generator
Fluoroscopy Modes: Continuous Fluoroscopy, High-Definition Pulsed Fluoroscopy, Digital Spot Film
Tube Voltage (kVp): 40 kV to 120 kV (125 kV max)
Tube Current (mA): Up to 100 mA high-power radiography pulse
C-Arm Free Space: Extra-large surgical clearance (> 800 mm free space)
Orbital Rotation: 135° orbital movement (-45° to +90°) with color-coded scales
Wiggle / Horizontal Motion: ± 12.5° horizontal panning and 200 mm motorized vertical column travel
Dose Control: Intelligent variable-frequency pulse, ABS (Automatic Brightness Stabilization), virtual collimation
Monitor Cart Options: Dual 19" medical grade displays or single 34" ultra-wide high-resolution surgical monitor
Connectivity: Full DICOM 3.0 (Storage, Worklist, Print, PACS transfer, USB export)
Clinical Applications: Orthopedics, Spine surgery, Pain management, Trauma, Vascular interventions, Urology
Certifications: CE, ISO 13485, ISO 9001
