24×30 cm Large A-Si Flat Panel
High-resolution amorphous silicon detector provides full-field coverage without edge clipping for all breast sizes.
Full-Field Digital Mammography (FFDM)
Navigator DR Care Digital Mammography
Large-Field A-Si Flat Panel Full-Field Digital Mammography
The Navigator DR Care is an advanced full-field digital mammography (FFDM) system featuring a 24×30 cm Amorphous Silicon (a-Si) flat-panel detector and a high-performance Italian IAE X-ray tube. Engineered for exceptional Detective Quantum Efficiency (DQE) and high spatial resolution, it delivers pristine low-dose breast screening images. Its robust detector design makes it exceptionally durable and suitable for both hospital radiology suites and mobile vehicle screening vans.
- System Type
- Full-Field Digital Mammography (FFDM)
- Detector Technology
- Amorphous Silicon (a-Si) Flat Panel Detector
- Active Detector Area
- 24 × 30 cm (full breast field coverage)
Sinomdt (Sino Medical-Device Technology Co., Ltd.) / Mammography Systems
Navigator DR Care Digital Mammography
Mammography Systems
Navigator DR Care Digital Mammography
Sinomdt (Sino Medical-Device Technology Co., Ltd.)
Navigator DR Care Digital Mammography
Mammography Systems
Product overview
Large-Field A-Si Flat Panel Full-Field Digital Mammography
The Navigator DR Care is an advanced full-field digital mammography (FFDM) system featuring a 24×30 cm Amorphous Silicon (a-Si) flat-panel detector and a high-performance Italian IAE X-ray tube. Engineered for exceptional Detective Quantum Efficiency (DQE) and high spatial resolution, it delivers pristine low-dose breast screening images. Its robust detector design makes it exceptionally durable and suitable for both hospital radiology suites and mobile vehicle screening vans.
0124×30 cm Large A-Si Flat Panel
02Italian IAE X-Ray Tube
03High DQE at Lower Radiation Dose
04Iso-Center C-Arm Motion
05Mobile Screening Van Ready
06Full DICOM 3.0 Compatibility
Core specifications
- System Type
- Full-Field Digital Mammography (FFDM)
- Detector Technology
- Amorphous Silicon (a-Si) Flat Panel Detector
- Active Detector Area
- 24 × 30 cm (full breast field coverage)
- X-ray Tube
- Italian IAE dual-track X-ray tube with Mo/W target
- Focal Spot Size
- 0.1 mm (Small) / 0.3 mm (Large)
- Tube Voltage (kVp)
- 20 kV – 40 kV (adjustable in 1 kV increments)
- Tube Current (mA)
- Up to 110 mA high-frequency output
- C-Arm Iso-Rotation
- -135° to +180° motorized rotation
- Exposure Modes
- Full Automatic Exposure Control (AEC), Manual, Semi-Auto
- Compression System
- Intelligent motorized flexible compression with emergency safety release
- Software & Workstation
- Dedicated medical acquisition workstation with DICOM 3.0, ROI enhancement
- Power Requirements
- 220V AC ± 10%, 50/60 Hz
- Clinical Deployments
- Hospitals, diagnostic clinics, mobile healthcare screening buses
- Certifications
- CE (TUV), ISO 13485, ISO 9001
Experience optimized workflow
High resolution cassette-sized digital imaging
The Navigator DR Care is an advanced full-field digital mammography (FFDM) system featuring a 24×30 cm Amorphous Silicon (a-Si) flat-panel detector and a high-performance Italian IAE X-ray tube. Engineered for exceptional Detective Quantum Efficiency (DQE) and high spatial resolution, it delivers pristine low-dose breast screening images. Its robust detector design makes it exceptionally durable and suitable for both hospital radiology suites and mobile vehicle screening vans.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
24×30 cm Large A-Si Flat Panel
02
Italian IAE X-Ray Tube
03
High DQE at Lower Radiation Dose
04
Iso-Center C-Arm Motion
05
Mobile Screening Van Ready
06
Full DICOM 3.0 Compatibility
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.
Italian IAE X-Ray Tube
Dual-track Mo/W target X-ray tube with fine 0.1 mm and 0.3 mm focal spots optimizes contrast and resolution.
High DQE at Lower Radiation Dose
Enhanced Detective Quantum Efficiency allows outstanding image contrast and micro-lesion detection at reduced radiation levels.
Iso-Center C-Arm Motion
Motorized iso-centric rotation (-135° to +180°) allows swift transitions between CC and MLO angles without bed height re-adjustment.
Mobile Screening Van Ready
High structural rigidity and environmental stability allow deployment in mobile breast screening trucks and vans across diverse regions.
Full DICOM 3.0 Compatibility
Seamless integration with hospital PACS, RIS, and HIS systems, including worklist management, print, and archive.
Performance and workflow
Built for reliable daily operation.
Navigator DR Care Digital Mammography brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
System Type
Full-Field Digital Mammography (FFDM)
02
Detector Technology
Amorphous Silicon (a-Si) Flat Panel Detector
03
Active Detector Area
24 × 30 cm (full breast field coverage)
Clinical focus
Large-Field A-Si Flat Panel Full-Field Digital Mammography
Large-Field A-Si Flat Panel Full-Field Digital Mammography
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- System Type
- Full-Field Digital Mammography (FFDM)
- Detector Technology
- Amorphous Silicon (a-Si) Flat Panel Detector
- Active Detector Area
- 24 × 30 cm (full breast field coverage)
- X-ray Tube
- Italian IAE dual-track X-ray tube with Mo/W target
- Focal Spot Size
- 0.1 mm (Small) / 0.3 mm (Large)
- Tube Voltage (kVp)
- 20 kV – 40 kV (adjustable in 1 kV increments)
- Tube Current (mA)
- Up to 110 mA high-frequency output
- C-Arm Iso-Rotation
- -135° to +180° motorized rotation
- Exposure Modes
- Full Automatic Exposure Control (AEC), Manual, Semi-Auto
- Compression System
- Intelligent motorized flexible compression with emergency safety release
- Software & Workstation
- Dedicated medical acquisition workstation with DICOM 3.0, ROI enhancement
- Power Requirements
- 220V AC ± 10%, 50/60 Hz
- Clinical Deployments
- Hospitals, diagnostic clinics, mobile healthcare screening buses
- Certifications
- CE (TUV), ISO 13485, ISO 9001
Designed for daily confidence
Navigator DR Care Digital Mammography combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- 24×30 cm Large A-Si Flat Panel
- Italian IAE X-Ray Tube
- High DQE at Lower Radiation Dose
- Iso-Center C-Arm Motion
- Mobile Screening Van Ready
- Full DICOM 3.0 Compatibility
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
Request documents
Keep exploring
Related products
Mammography Systems
Navigator Platinum Mammography
Analog Film-Screen Mammography System
Discover product ↗
Mammography Systems

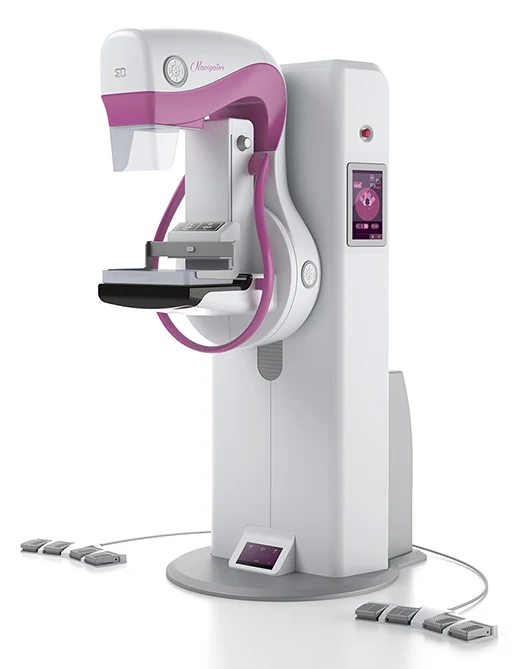

Navigator Star Series Digital Mammography (3000A)
3D Tomosynthesis Digital Mammography System
Discover product ↗
Mammography Systems

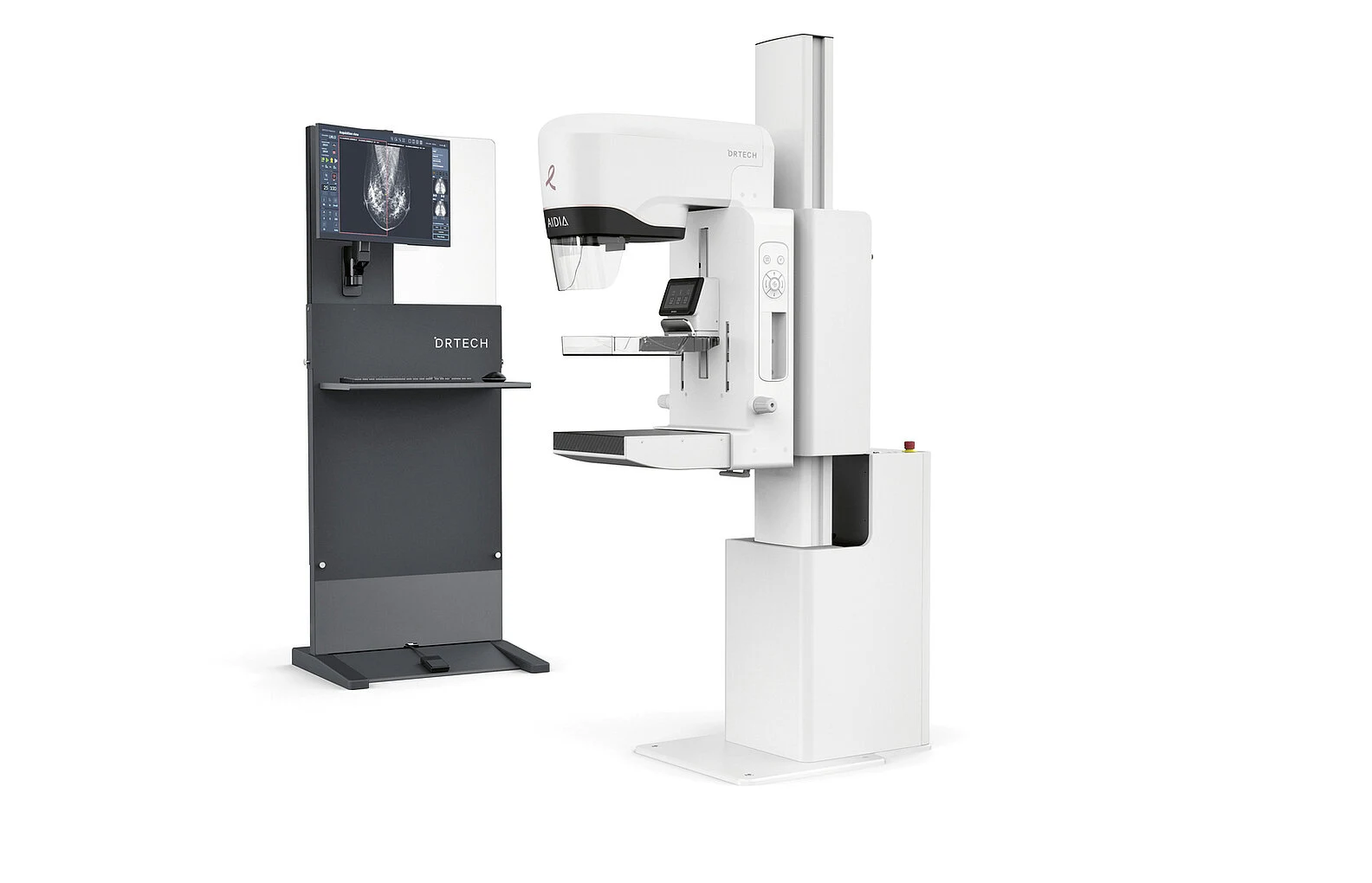

DRTECH AIDIA VOLVE Full-Field Digital Mammography
