70 kHz High Frequency Generator
Delivers stable, high-efficiency X-ray output with lower radiation dose exposure for enhanced patient and operator safety.
Digital Portable X-ray System

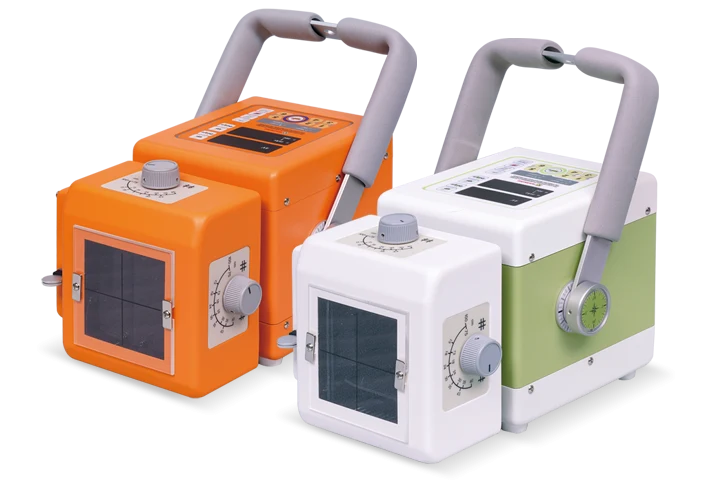

ECOTRON Digital Portable X-ray System (EPX-Series)
High-Frequency Compact Portable X-ray System with FPD Integration
The ECOTRON Digital Portable X-ray System (EPX-Series: EPX-F1600 to EPX-F5000) is a high-frequency (70 kHz) portable X-ray generator line designed for mobile diagnostic radiography, emergency field response, and clinical applications. Featuring lightweight ergonomic construction, Flat Panel Detector (FPD) integration, DICOM 3.0 compliance, and output power options from 1.6 kW to 5.0 kW.
- Operating Frequency
- 70 kHz High Frequency Generator
- Power Output Range
- 1.6 kW (EPX-F1600) to 5.0 kW (EPX-F5000)
- Voltage Range (kV)
- 40 - 120 kV (Model dependent)
ECOTRON CO., LTD. / Digital Radiography Systems
ECOTRON Digital Portable X-ray System (EPX-Series)
Digital Radiography Systems
ECOTRON Digital Portable X-ray System (EPX-Series)
ECOTRON CO., LTD.
ECOTRON Digital Portable X-ray System (EPX-Series)
Digital Radiography Systems
Product overview
High-Frequency Compact Portable X-ray System with FPD Integration
The ECOTRON Digital Portable X-ray System (EPX-Series: EPX-F1600 to EPX-F5000) is a high-frequency (70 kHz) portable X-ray generator line designed for mobile diagnostic radiography, emergency field response, and clinical applications. Featuring lightweight ergonomic construction, Flat Panel Detector (FPD) integration, DICOM 3.0 compliance, and output power options from 1.6 kW to 5.0 kW.
0170 kHz High Frequency Generator
02Flat Panel Detector (FPD) Integration
03Advanced DR Software Suite
04Lightweight & Ultra-Portable
05Programmable Memory Settings
06LED Collimator with Auto-Timer
Core specifications
- Operating Frequency
- 70 kHz High Frequency Generator
- Power Output Range
- 1.6 kW (EPX-F1600) to 5.0 kW (EPX-F5000)
- Voltage Range (kV)
- 40 - 120 kV (Model dependent)
- Current Range (mA)
- 12 - 100 mA (Model dependent)
- mAs Range
- 0.4 - 100 mAs
- Focal Spot Size
- 0.8×0.8 mm (EPX-F1600) / 1.2×1.2 mm (F2400/F2800) / 1.8×1.8 mm (F4000/F5000)
- Anode Heat Storage
- 8.5 kHU (F1600) to 50 kHU (F2800)
- Dimensions (Generator)
- 360 mm (L) × 200 mm (W) × 190 mm (H)
- Weight (Net / Gross)
- 7.2 kg - 13.0 kg (Net) / 11.5 kg - 22.0 kg (Gross)
- Certifications
- CE Certified & FDA Cleared
- Warranty
- 24 Months Manufacturer Warranty
- Included Accessories
- Carrying Case, Hand Switch, 6M Power Cable, Collimator Lamp
Experience optimized workflow
High resolution cassette-sized digital imaging
The ECOTRON Digital Portable X-ray System (EPX-Series: EPX-F1600 to EPX-F5000) is a high-frequency (70 kHz) portable X-ray generator line designed for mobile diagnostic radiography, emergency field response, and clinical applications. Featuring lightweight ergonomic construction, Flat Panel Detector (FPD) integration, DICOM 3.0 compliance, and output power options from 1.6 kW to 5.0 kW.
Designed per ISO 4090 standard to fit standard Bucky trays with 139µm pixel pitch and 16-bit ADC for exceptional diagnostic detail.
01
70 kHz High Frequency Generator
02
Flat Panel Detector (FPD) Integration
03
Advanced DR Software Suite
04
Lightweight & Ultra-Portable
05
Programmable Memory Settings
06
LED Collimator with Auto-Timer
Key features
Designed around the way you work
Each capability is integrated to improve everyday operation, examination consistency, and confidence at the point of care.

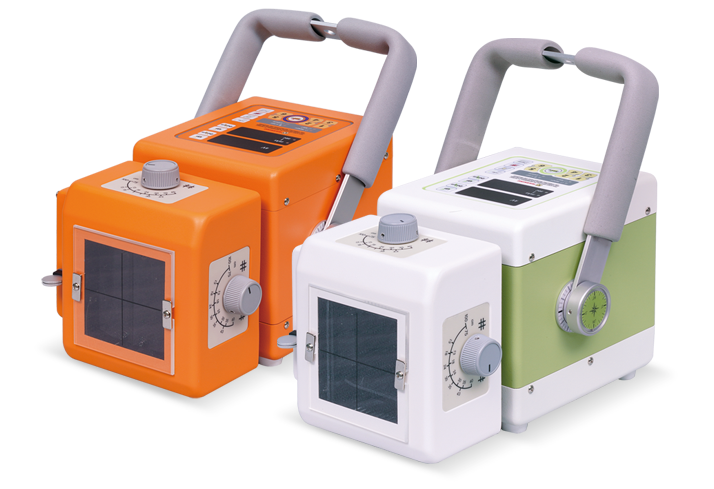

Flat Panel Detector (FPD) Integration
Seamlessly pairs with wired and wireless Flat Panel Detectors for immediate digital radiography image acquisition.
Advanced DR Software Suite
Features rapid pre/post-processing, multi-hardware control, rotation, annotation, masking, and DICOM 3.0 PACS connectivity.

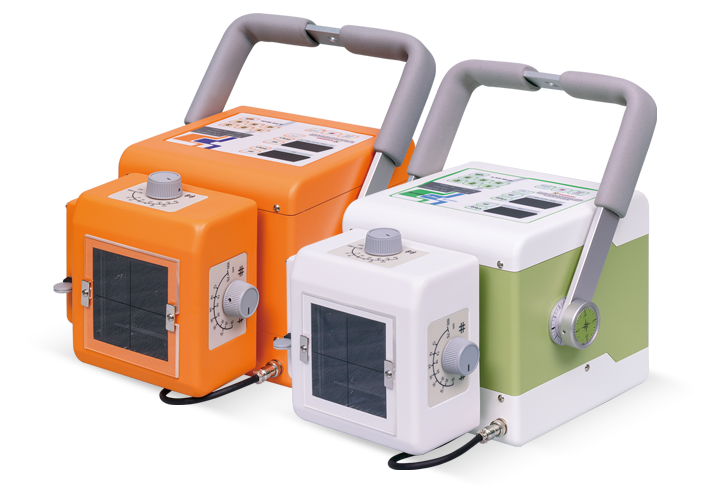

Lightweight & Ultra-Portable
Compact body with carrying case and 6M power cord allows effortless field transportation and mobile clinical deployment.

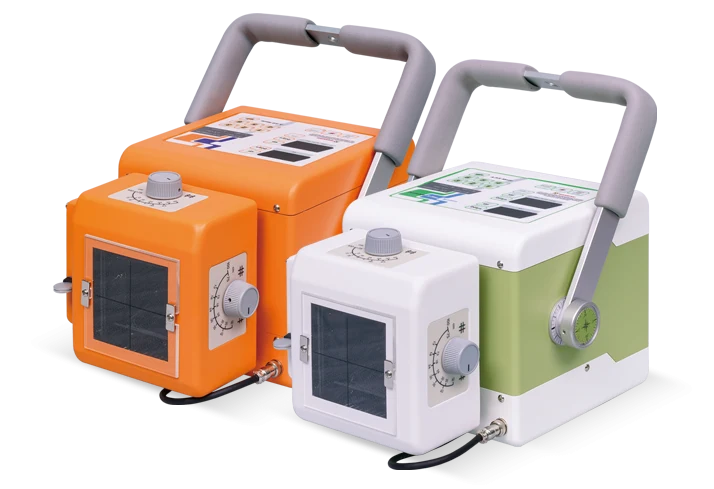

Programmable Memory Settings
Equipped with 6 programmable memory settings (PROM) for fast one-touch exposure parameter selection during busy workflows.
LED Collimator with Auto-Timer
High-luminance LED collimator lamp with 30-second automatic timer minimizes energy usage while providing clear field targeting.
Performance and workflow
Built for reliable daily operation.
ECOTRON Digital Portable X-ray System (EPX-Series) brings its core functions together in one coherent workflow, helping operators position, acquire, review, and complete examinations with fewer unnecessary steps.
01
Operating Frequency
70 kHz High Frequency Generator
02
Power Output Range
1.6 kW (EPX-F1600) to 5.0 kW (EPX-F5000)
03
Voltage Range (kV)
40 - 120 kV (Model dependent)
Clinical focus
High-Frequency Compact Portable X-ray System with FPD Integration
High-Frequency Compact Portable X-ray System with FPD Integration
System information
Product details and resources
Review core configuration details, workflow information, and available product resources.
- Operating Frequency
- 70 kHz High Frequency Generator
- Power Output Range
- 1.6 kW (EPX-F1600) to 5.0 kW (EPX-F5000)
- Voltage Range (kV)
- 40 - 120 kV (Model dependent)
- Current Range (mA)
- 12 - 100 mA (Model dependent)
- mAs Range
- 0.4 - 100 mAs
- Focal Spot Size
- 0.8×0.8 mm (EPX-F1600) / 1.2×1.2 mm (F2400/F2800) / 1.8×1.8 mm (F4000/F5000)
- Anode Heat Storage
- 8.5 kHU (F1600) to 50 kHU (F2800)
- Dimensions (Generator)
- 360 mm (L) × 200 mm (W) × 190 mm (H)
- Weight (Net / Gross)
- 7.2 kg - 13.0 kg (Net) / 11.5 kg - 22.0 kg (Gross)
- Certifications
- CE Certified & FDA Cleared
- Warranty
- 24 Months Manufacturer Warranty
- Included Accessories
- Carrying Case, Hand Switch, 6M Power Cable, Collimator Lamp
Designed for daily confidence
ECOTRON Digital Portable X-ray System (EPX-Series) combines accessible controls, optimized positioning, and high image quality to keep examinations moving smoothly.
- 70 kHz High Frequency Generator
- Flat Panel Detector (FPD) Integration
- Advanced DR Software Suite
- Lightweight & Ultra-Portable
- Programmable Memory Settings
- LED Collimator with Auto-Timer
Product resources
Detailed brochures, configuration guidance, and regulatory documents are available from TMS Enterprise.
